VW EA888 Gen3 2.0 TSI Engine Overhaul Gasket & Seal Kit
VW EA888 Gen3 2.0 TSI Engine Overhaul Gasket & Seal Kit
Product information
Description
Overview

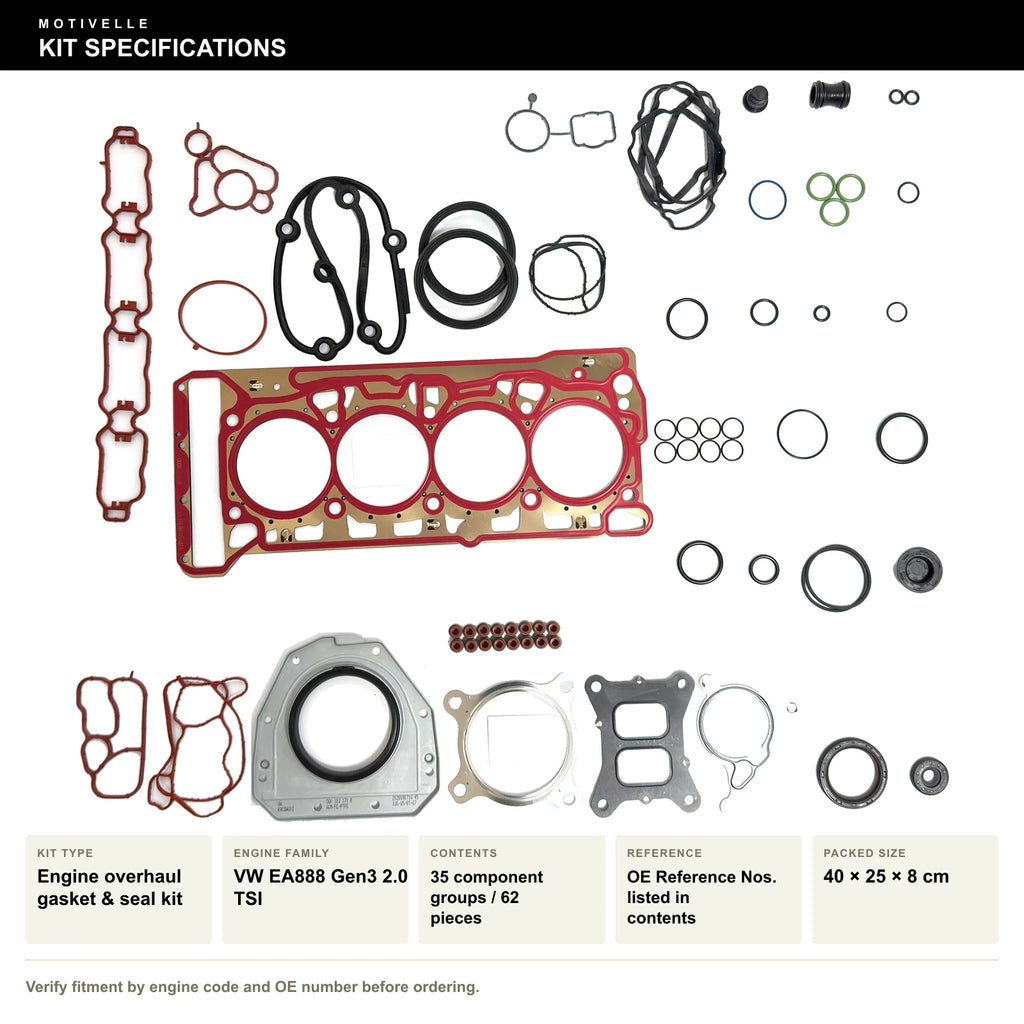

Overhaul gasket and seal kit for VW EA888 Gen3 2.0 TSI engines. The kit has 35 numbered component groups (62 pieces), including the cylinder head gasket. The numbers in the photos match the Kit Contents table below.
Intended application
Engine overhaul or leak repair on VW EA888 Gen3 2.0 TSI engines. Compare each OE Reference No. with the part you remove.
Fitment
Check your engine code and OE Reference Nos. before ordering. Contact us with your VIN if you are unsure.
Kit contents

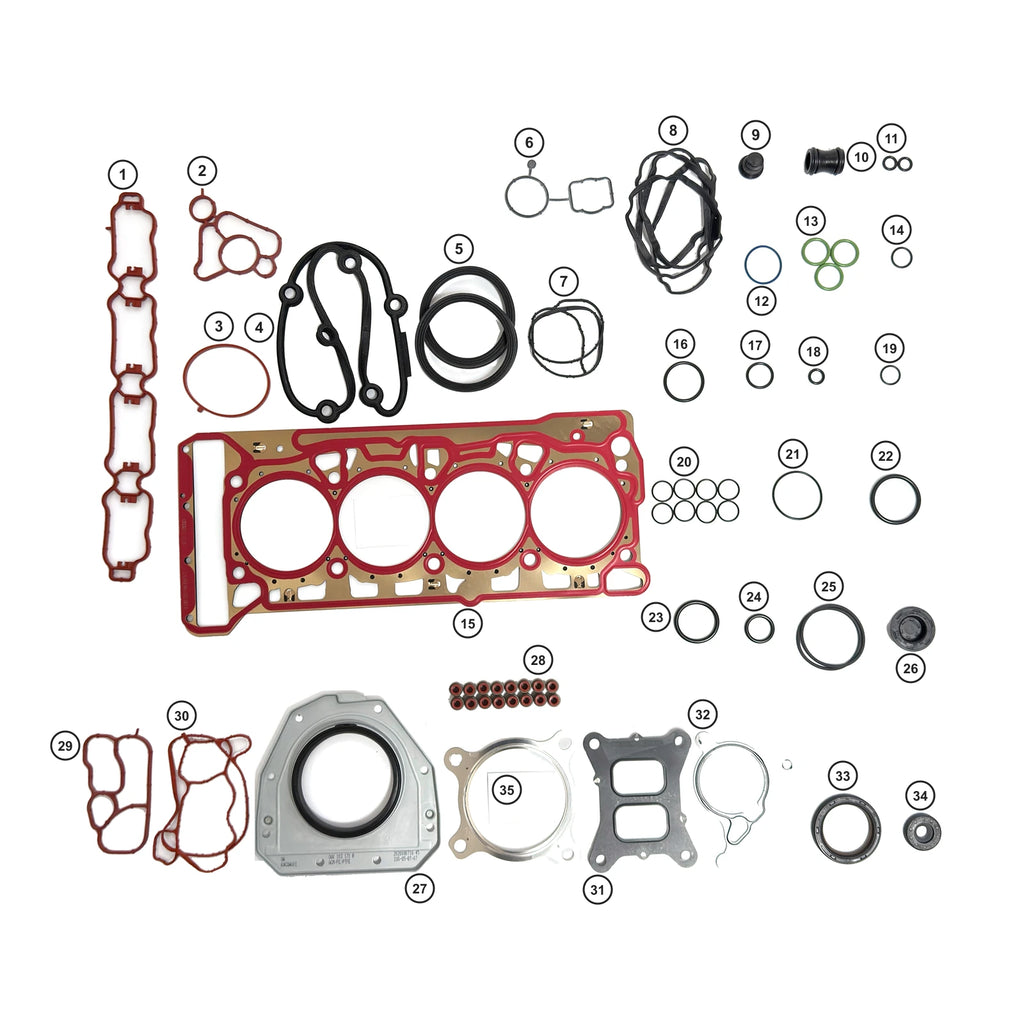

Part numbers are shown as printed on each component's label where they have been checked; other rows are listed by description and quantity. The numbers refer to the numbered photo (image 2).
| No. | Description | OE Reference No. | Qty |
|---|---|---|---|
| 1 | Intake manifold gasket | 06K 129 717 A | 1 |
| 2 | Gasket / seal | 1 | |
| 3 | Sealing ring (large) | 1 | |
| 4 | Valve cover gasket | 06G 103 483 | 1 |
| 5 | Sealing ring | 06G 103 583 | 2 |
| 6 | Gasket / seal | 06K 121 139 | 1 |
| 7 | Gasket / seal | 1 | |
| 8 | Oil pan gasket | 06L 103 649 B | 1 |
| 9 | Screw plug | 1 | |
| 10 | Connecting sleeve with sealing rings | 06K 121 131 | 1 |
| 11 | Sealing ring | N 900 672 02 | 2 |
| 12 | Sealing ring | WHT 005 184 | 1 |
| 13 | Sealing ring | N 028 222 2 | 3 |
| 14 | Sealing ring (small) | WHT 006 112 | 1 |
| 15 | Cylinder head gasket | 1 | |
| 16 | Sealing ring | WHT 001 688 | 1 |
| 17 | Sealing ring | WHT 005 440 | 1 |
| 18 | Sealing ring (small) | WHT 001 905 | 1 |
| 19 | Sealing ring (small) | WHT 006 113 | 1 |
| 20 | Sealing ring | 8 | |
| 21 | Sealing ring | 06E 145 117 A | 1 |
| 22 | Sealing ring | 4E0 121 666 | 1 |
| 23 | Sealing ring | N 907 653 01 | 1 |
| 24 | Sealing ring (small) | WHT 001 709 | 1 |
| 25 | Sealing ring (large) | WHT 007 212 B | 2 |
| 26 | Plug cap | 06H 115 418 F | 1 |
| 27 | Flange with integrated seal | 06K 103 171 R | 1 |
| 28 | Valve stem seal | 16 | |
| 29 | Gasket / seal | 1 | |
| 30 | Gasket / seal | 06K 103 484 C | 1 |
| 31 | Gasket / seal | 06L 253 039 C | 1 |
| 32 | Gasket / seal | 1 | |
| 33 | Shaft seal ring (large) | 1 | |
| 34 | Shaft seal ring (small) | 06K 103 085 H | 1 |
| 35 | Metal gasket | 8K0 253 115 L | 1 |
OE Reference note
OE Reference Nos. are shown only to help you cross-reference the parts you remove. They are not a claim that the parts were made or supplied by the vehicle maker. Volkswagen and related names and numbers belong to their respective owners; Motivelle is not affiliated with them.
Installation notes
- Professional installation is recommended. Follow the vehicle manufacturer's workshop manual for procedure and tightening specifications; none are supplied here.
- Compare each part with the one removed before fitting. Do not use a part that does not match.
- Sealant, bolts and fluids are not part of this kit.
Ships by express courier (UPS, DHL or FedEx). Shipping is calculated at checkout and is not included in the price.
Choose duties-on-delivery or DDP (duties prepaid) at checkout. With duties-on-delivery, import duties and taxes, if any, are the responsibility of the recipient.
A signature may be required on delivery.
FAQ
Which engines is this kit for? The kit is listed for VW EA888 Gen3 2.0 TSI engines. Check your engine code and OE Reference Nos. before ordering.
Is the cylinder head gasket included? Yes. One cylinder head gasket is included (No. 15).
Are head bolts included? No. Bolts are not part of this kit.
How can I check the part numbers? Use the OE Reference Nos. in the Kit Contents table and compare them with the parts you remove.
Specifications
Technical identification
- Engine platform
- EA888 Gen3 2.0 TSI
